Description

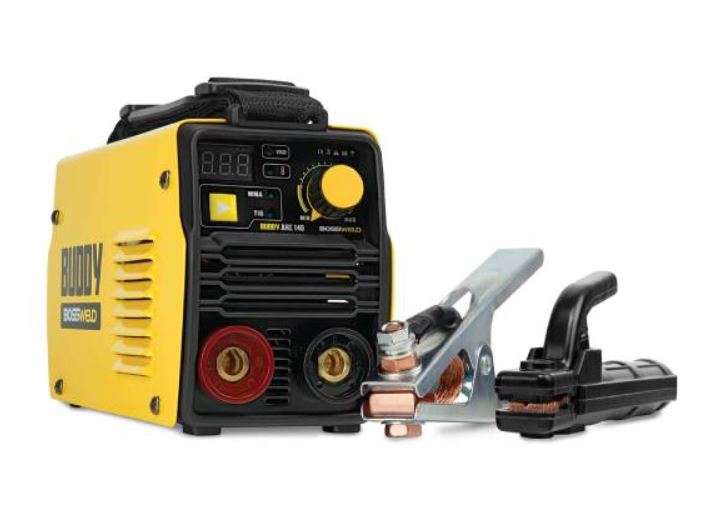

Bossweld Buddy Arc 140 Inverter Welder
The Bossweld Buddy Arc 140 with VRD is the latest in IGBT MMA stick electrode welder technology.
This very lightweight welding machine is easy to use, generating a very smooth and stable output.
Built-in arc force, hot start, and anti-stick functions.
Ideal for welding jobs around the home, farm, workshop, or on-site.
Machine Features
Ultra-portable DC Stick and Lift Arc TIG welder.
240V Input / 10Amp plug.
Variable current control with digital display.
Easy to set up and operate.
Built-in arc force, hot start, and anti-stick functions.
VRD (Voltage Reduction Device) Increased Safety.
Applicable Material
Mild Steel
Stainless Steel
Cast Iron
Common Application
General repairs and maintenance
Rural applications
Site repair & construction
Technical Specification
Power Supply 240V
Primary Input Plug Fitted 10 Amp
Duty Cycle (MMA) 15% @ 140A / 60% @ 70A / 100% @ 54A
Open Circuit Voltage 62V (18V VRD)
Output Current Range 10 - 140A
I ieff 10A
Input Current Max 25A
Power Factor 0.76
Protection Class IP21S
Insulation Class H
Thermal Overload Protected Yes
Electrode Diameter Range 2.5 - 3.2mm
Machine Dimensions 210 x 100 x 137mm
Machine Weight 2kg
Included Accessories
Electrode Holder
Earth Clamp
Carry Strap
Carry Case
