Description

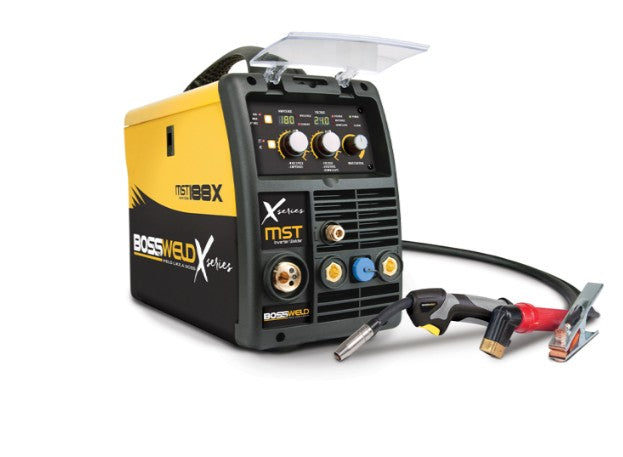

The Bossweld MST 188X is a lightweight and portable multi process inverter based welder that provides the opportunity to MIG, Stick and TIG weld from the same machine, making it the ideal choice for your next welding project.
180 Amp output
MIG /Stick /TIG welder
Fitted 10 Amp plug
Digital LED display
DC TIG lift arc start
Excellent arc stability
Gas /gasless operation
2T / 4T trigger latching
Stepless amperage control
Generator safe
Suits D100/D200 spools
Spool gun ready
Specifications:
Input Power Single Phase 240V 50-60 HZ +/-15%
Duty Cycle @ 40°C MIG/TIG/MMA 10% @ 180A
Open Circuit Voltage MIG 58.5 V
Output Current Range MIG 40-180 Amps
MMA / TIG 10-180 Amps
I Max MIG 37.5A>
TIG 29.5A
MMA 44A
I eff MIG/MMA 10A
TIG 9.5A
Protection/Insulation Class IP21 / H
Wire Diameter Range 0.6 to 1.0 mm
Electrode Diameter Range 1.6 to 3.2 mm
Thermal Overload Yes
Minimum KVA 9.0 KVA
Dimensions 55 x 39.5 x 21.4 cm
Weight 12.5 kg
