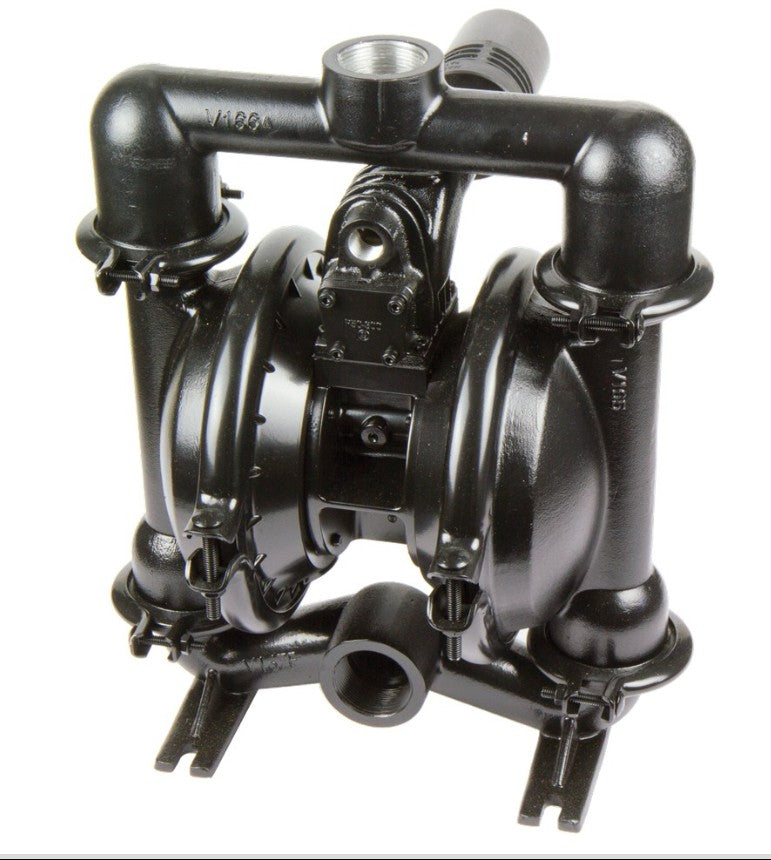

Air Operated Diaphragm Pump - 1 1/2"
The Macnaught DDP38 offers an economical and reliable pump for transferring light to medium viscosity fluids. High flow rates can be achieved easily, particularly in low back-pressure applications. The pump is capable of safe dry-running for simple self-priming without damage.
Featuring a robust cast aluminium body, the DDP38 is compatible with a wide range of chemicals, making it suitable for oils (new & used), engine coolants (RTU), diesel, and oily water applications. Fully repairable with spare parts readily available. (Not suitable for flammable liquids.)
FEATURES
- Up to 265 L/min flow rate, measured at the pump outlet with water
- Fitted with band clamps on inlet and outlet manifolds for easy dismantling, repairs, or clearing blockages
- Cast aluminium body for wide chemical compatibility across multiple applications
- Air-operated design allows speed control for adjustable pump output
- Cost-effective solution for fast transfer of low to medium viscosity fluids
- Easy self-priming and dry-run safe for short periods without damage
SPECIFICATIONS
- Maximum air pressure: 690 kPa (100 psi)
- Inlet / outlet ports: 1½" BSP(F)
- Air inlet size/type: 1/2" NPT(F)
- Maximum flow rate: 265 L/min (viscosity dependent)
- Suction lift: 4.6 m (dry), 7.6 m (wet)
- Maximum solids handling: 4.76 mm (0.188")
- Fluid temperature range: -12°C to 82°C
- Maximum noise level: 77 dB(A)
- Fluid compatibility: oils (new & used), engine coolants RTU (new & used), oily water, diesel
- Wetted components: cast aluminium (body), Buna N (valve seats, diaphragms, check valves)
PACKAGE INCLUDES
- Macnaught DDP38 1½" air-operated double diaphragm pump
- Air exhaust muffler 3/4" NPT(M)
- Instruction manual
